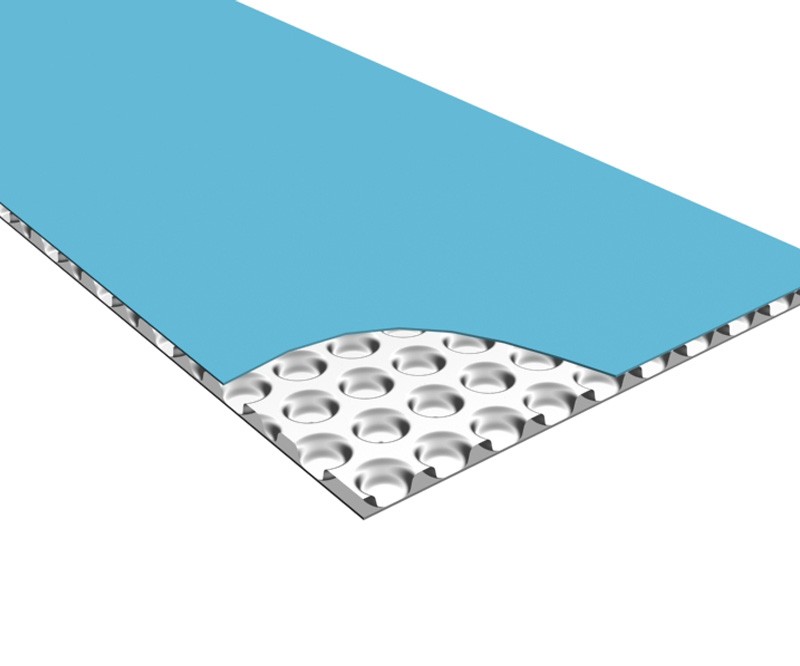

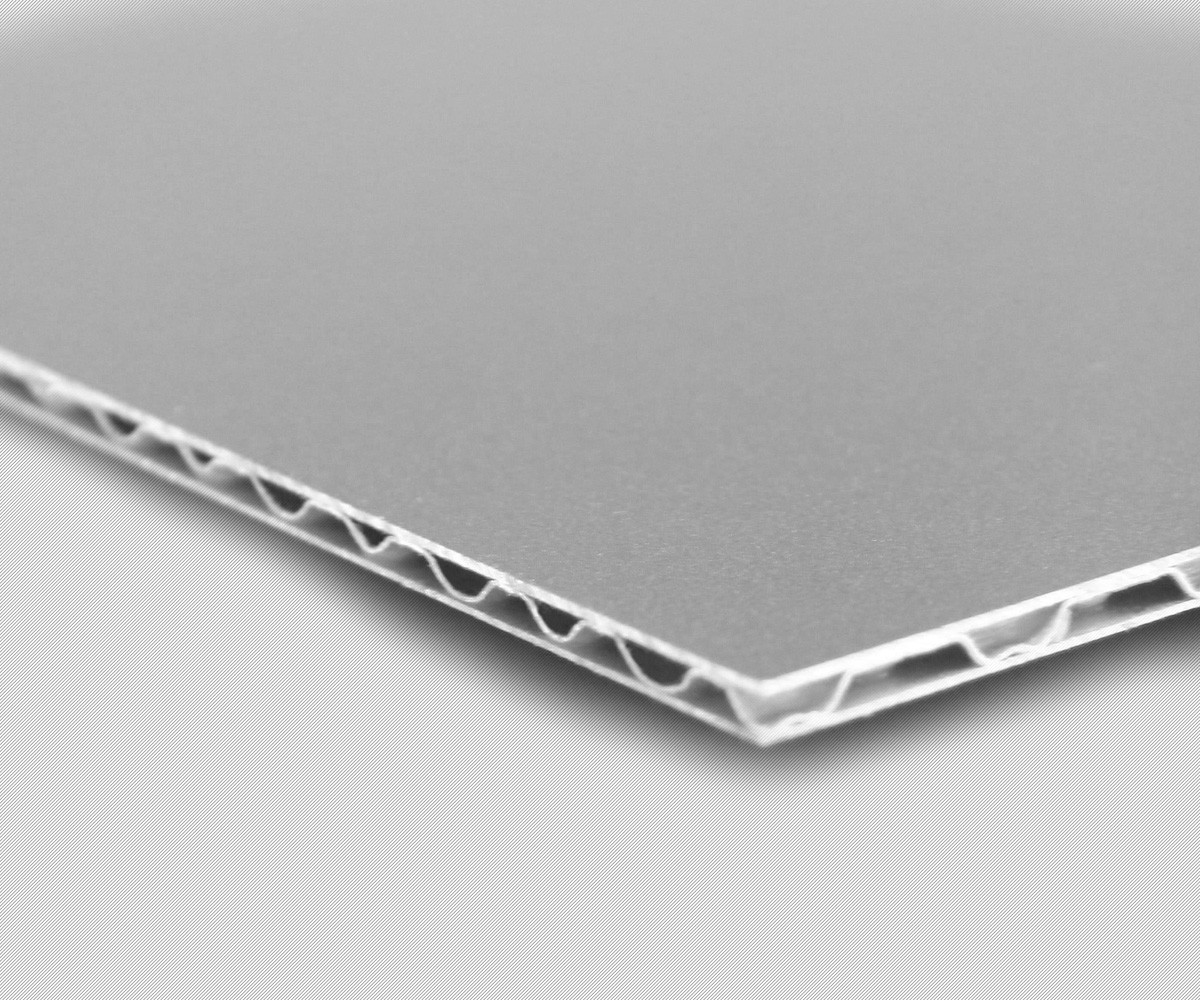

What is SKYPanel 3D？

A composite panel consisting of two layers of aluminum sheets bonded to two sides of corrugate aluminum core.

  • The total thickness of the panel is 3mm，4mm，6mm.
  • The thickness of the upper and lower aluminum sheet is 0.7~0.4mm.
  • The core material is made of 0.3mm aluminum sheet pressed into a honeycomb structure;
Request A Quote

Products Parameter

Item Specification Dimentional Tolerence
Thickness 3mm, 4mm，6mm ±0,2 mm
Width 1250mm, 1500mm ±2 mm
Length 2000mm-6800mm ±3 ~ ±5 mm
Thickness of front sheet 0.7mm, 0.5mm ±0.02 mm
Thickness of back sheet 0.7mm, 0.5mm, 0.4mm ±0.02 mm
Surface Finish PVDF/NANO/FEVE/HDPE/PE /
Weight [kg/m2] 3.8~4.3[kg/m2] /

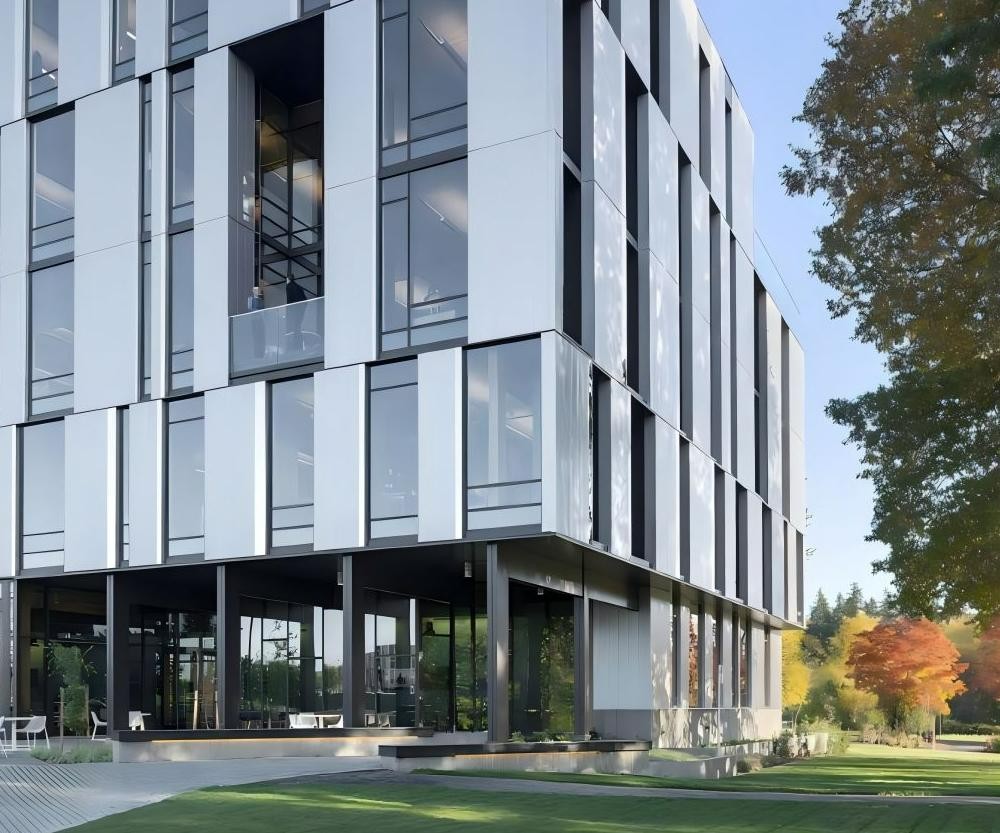

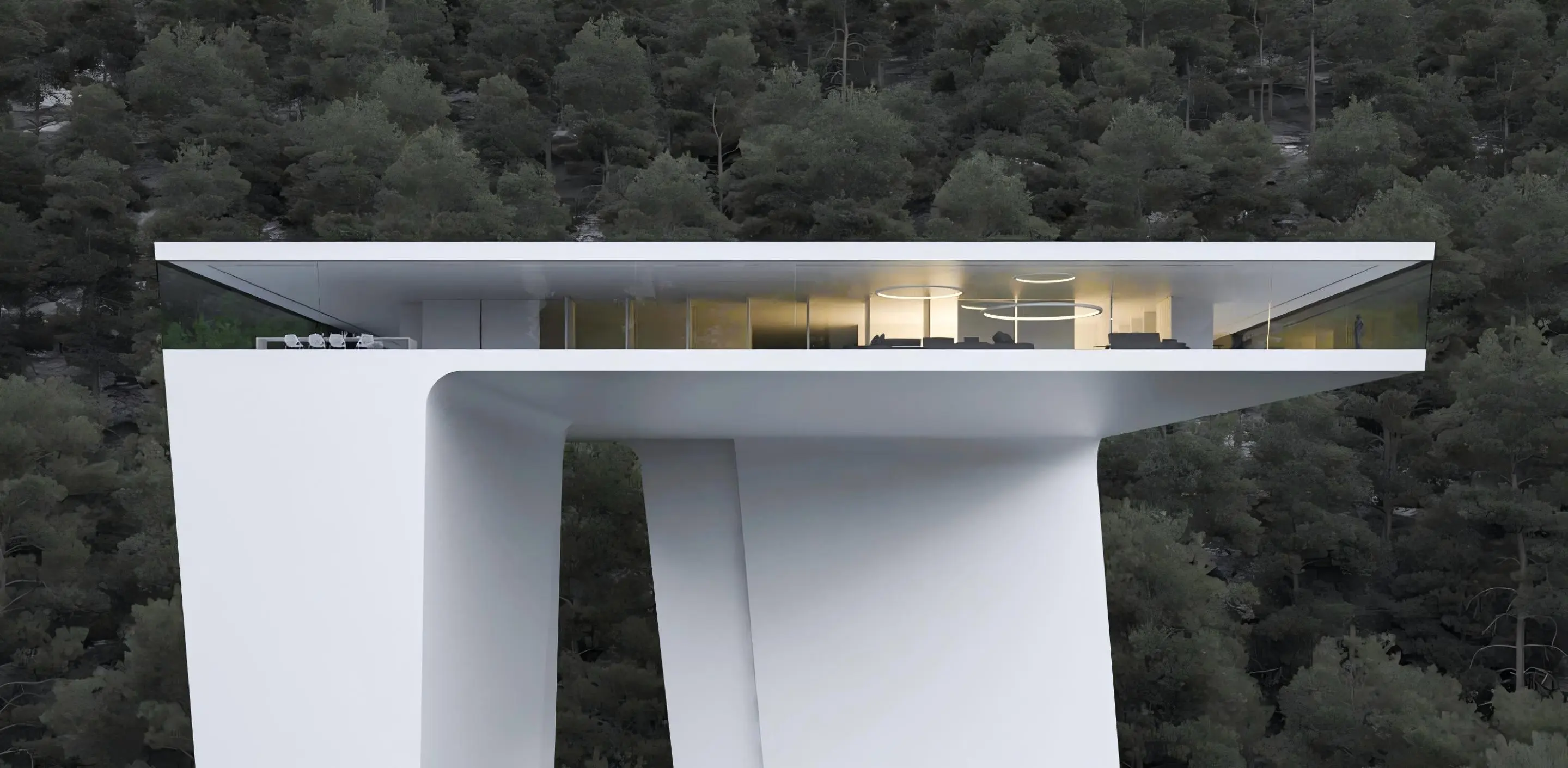

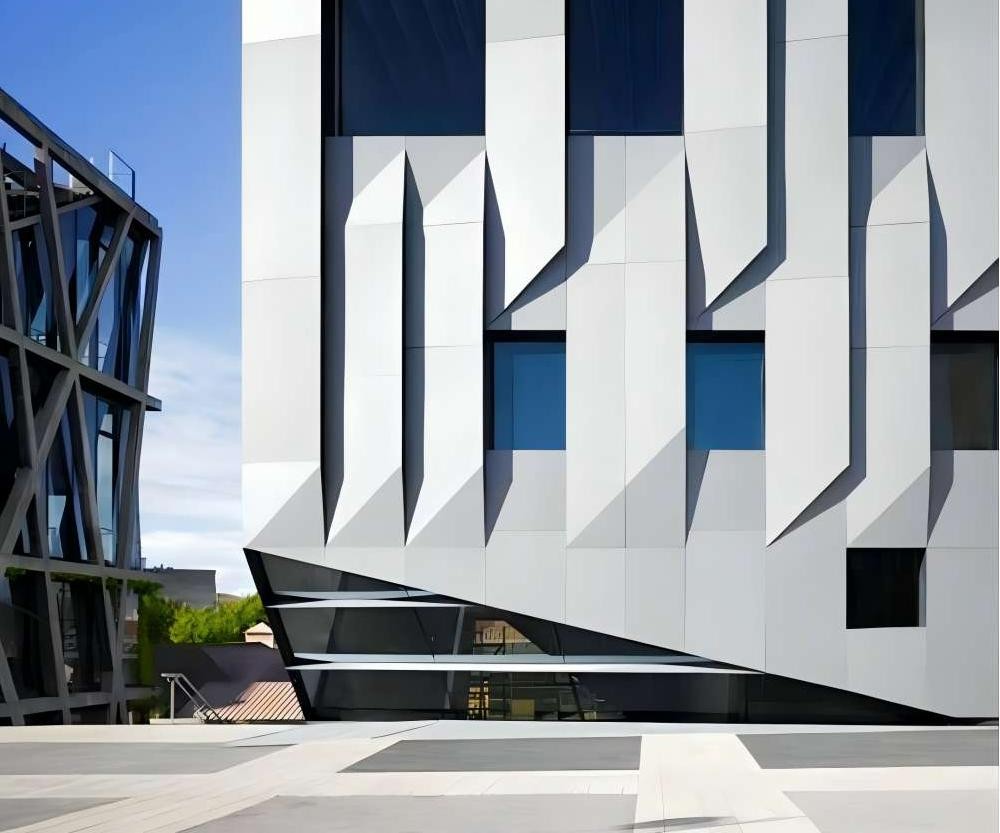

APPLICATIONS

  • Due to its unique structure and excellent performance, SKYPanel 3D composite panels are widely used in many fields:

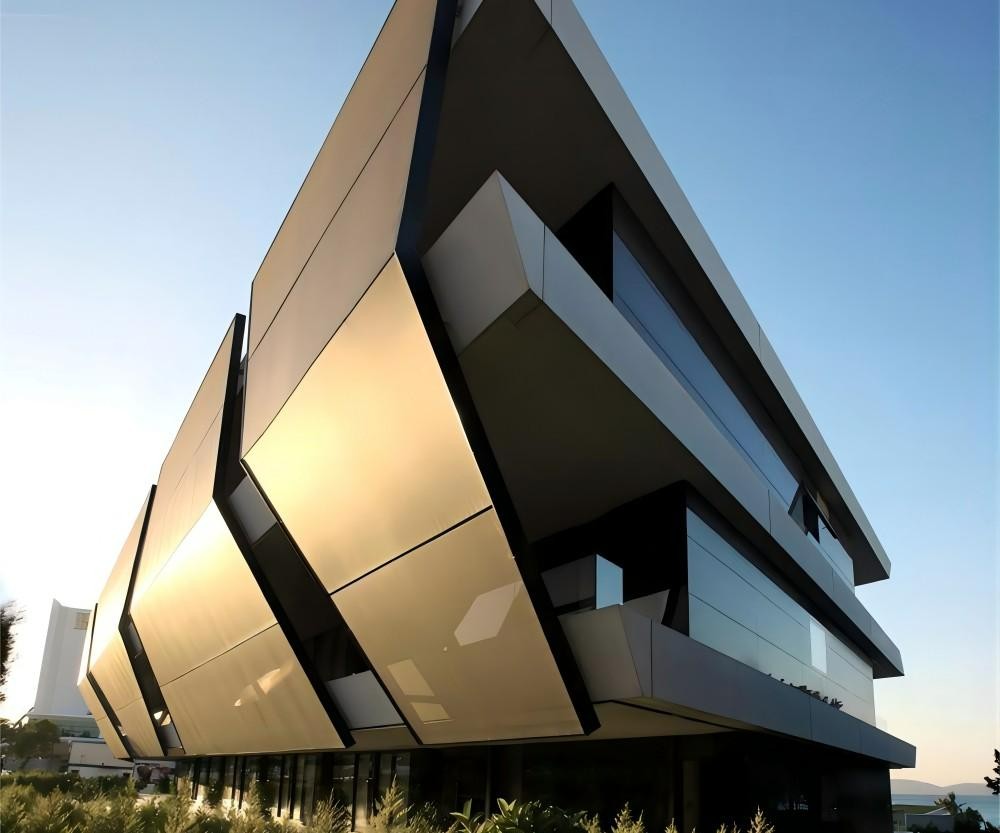

  • Exterior decoration,
    Interior wall panel decoration,
    Big board ceiling,
    Billboards,
    Industrial applications,
    ...

CHARACTERISTICS

  • Non-combustion
    · EN13501 A2

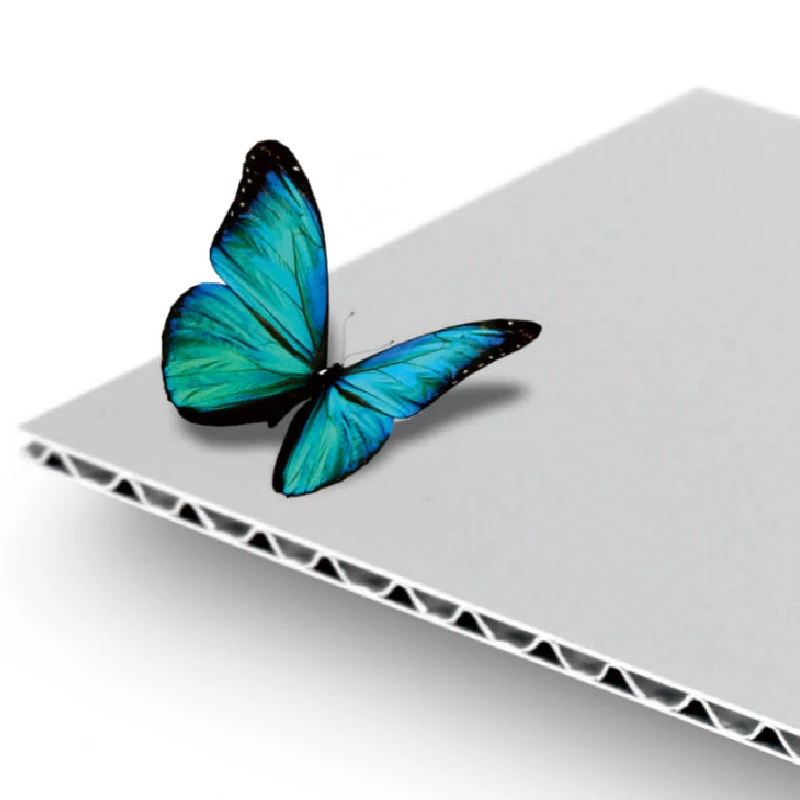

  • In light weight and Strong
    · The smooth surface is bonded with a special structure core, creating an exceptionally sturdy structure
    · The 0.7/4mm panel weighs only 4kg/m², which is half the weight of standard A2 ACM and just 45% of the weight of a 3mm solid aluminum panel
  • 100% recycling,Reduce construction waste
    · All aluminum structure, 100% recycling and low carbon, reduce resource consumption, reduce construction waste pressure.
  • Suitable for a wide temperature range
    · between - 50°C up to +80°C

SURFACE FINISH

Surface Finish
  • PVDF
  • Nano PVDF
  • FEVE
  • HDPE
  • ANODIZE
    • Color selection
  • Dozens of standard regular colors
  • Accept custom new colors and gloss
  • Keep the color consistent in multiple batches.

    • Simple Convenient Processing

    • · Sawing, grooving, and hemming as normal ACP.
      · It can be machined in the factory using CNC professional tools.
      · It can be processed on site using a simple hand-held sawing and slotting machine.
      · Laminating
      · Painting | Spray painting | Lacquering
      · Contour milling
      · Water jet cutting
      · Shearing
      · Sawing
      · Punching
      · Gluing
      · Drilling
      · Riveting
      · Screwing

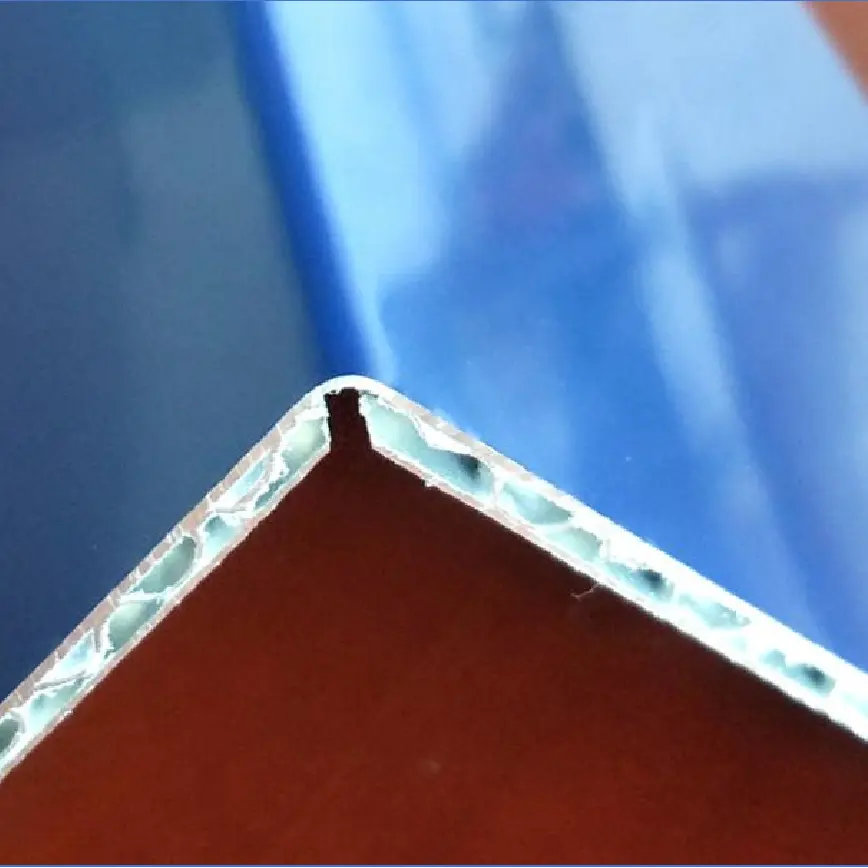

      · Folding (v-groove) | Cold bending
      · Roll bending | Round bending
      · Engraving
