What is SKYPANEL？

SKYPANEL is a composite panel consisting of two aluminum panels and a polyethylene (LDPE) core. It features a core made of either LDPE (Low-Density Polyethylene), B1-grade fireproof material, or A2- grade fireproof material；and is coated with PVDF/HDPE paint. It provides excellent weather resistance, lightweight properties, and an appealing aesthetic, making it suitable for building facades, billboards, and interior decoration.

APPLICATIONS

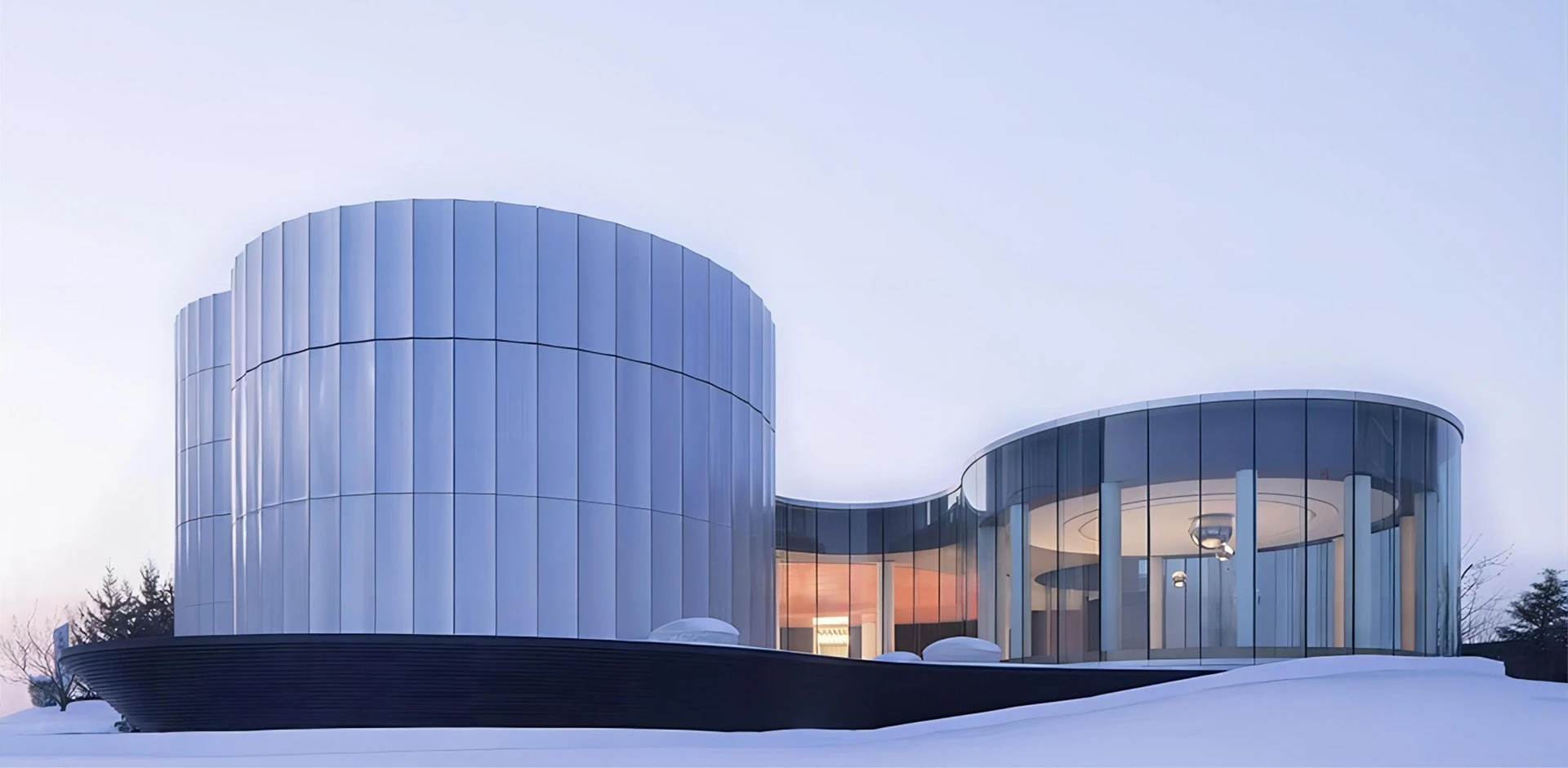

With its vibrant color options, lightweight design, smooth surface, and excellent workability, SKYPANEL is an ideal choice in the construction field. Its diverse appearance options enhance the aesthetic appeal of buildings while also offering durability and functionality. During installation, SKYPANEL is easy to process and install, making it suitable for complex design requirements and significantly reducing construction costs. Consequently, SKYPANEL is widely applied to exterior walls, curtain walls, renovations of older buildings, interior wall decoration, and more.
To meet varying fire safety needs, SKYPANEL offers three fire-resistance levels:
A2 Grade: With the highest level of fire resistance, suitable for high-rise buildings, curtain walls, and areas with strict fire safety requirements.
B1 Grade: Provides moderate fire resistance, ideal for building facades, exterior cladding, and standard commercial spaces.
Normal Grade: Suited for areas with low fire safety requirements, such as interior walls, signage, and low-risk decorative applications.
These fire resistance options allow SKYPANEL to flexibly adapt to different architectural and design needs, providing an attractive, practical, and safe solution for buildings.

SURFACE FINISH

Surface Finish: PVDF

Nano PVDF

FEVE

HDPE

ANODIZE

Color selection: Dozens of standard regular colors

Accept custom new colors and gloss

Keep the color consistent in multiple batches.

CHARACTERISTICS

Lightweight:
Reduces the overall load on structures, making it easy to transport and install.
Weather Resistance:
Excellent, can withstand UV exposure, rain, and other environmental factors while maintaining color stability.
Chemical Resistance:
Good resistance to general chemicals (acids, bases, and solvents).
Scratch Resistance:
High surface hardness and superior scratch resistance, suitable for high-traffic areas.
Color Fastness:
Colors do not easily fade after prolonged exposure to sunlight, maintaining an attractive appearance.
Stain Resistance:
Smooth surface that is easy to clean and maintain, with dirt not easily adhering.

PROCESSING

SKYPANEL (ACP) are highly versatile and can be processed using a variety of techniques to meet diverse design and structural needs. These panels can be shaped, joined, and finished with precision to suit architectural, decorative, and functional requirements across multiple industries. The following are common processing methods used for aluminum composite panels:
· Contour milling, Water jet cutting, Engraving
· Shearing, Sawing, Punching, Drilling
· Gluing, Riveting, Screwing, Hot-air welding
· Laminating
· Folding (V‑ groove) | Cold bending
· Roll bending | Round bending

Item	SKYPANEL A2	SKYPANEL B1	SKYPANEL Normal	Tolerance
Thickness	3~4mm	3~6mm	2mm~6mm	± 0,2 mm
Width	1250mm，1500mm	1250, 1500, 2000mm	1000, 1250, 1500, 2000mm	± 2 mm
Length	2000mm-6800mm	2000~6800mm	2000~6800mm	±3 ~ ± 5 mm
Thickness of front sheet	0.3mm; 0.4mm; 0.5 mm	0.3mm; 0.4mm; 0.5 mm	0.2mm; 0.3mm; 0.4mm; 0.5 mm	± 0.02 mm
Thickness of back sheet	0.3mm; 0.4mm; 0.5 mm	0.3mm; 0.4mm; 0.5 mm	0.2mm; 0.3mm; 0.4mm; 0.5 mm	± 0.02 mm
Weight [kg/m2]	6.3~8.1[kg/m2]	5.5~10.7[kg/m2]	2.8~8[kg/m2]	/
Surface Finish	PVDF/NANO/FEVE/HDPE/PE			/
